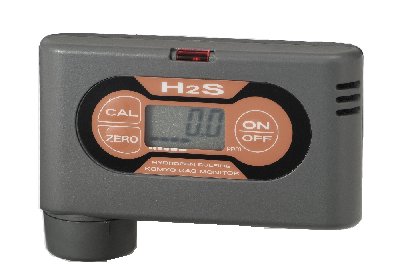

TPA-5200E


Hydrogen Sulphide is encountered in many processes like waste water and sewerage plants, paper mills and petroleum processing.
The TPA-5200E H2S personal monitor alerts the worker to dangerous levels of Hydrogen Sulphide.
Easy to use and transfer
Vibrating alarm for high noise areas
Large luminated LCD display
Operation for about 5 months at 8 hours per day with alkaline batteries
Sensor faces down for protection from dust and water
SPECIFICATIONS


Model

TPA-5200E
Measuring Gas Hydrogen Sulphide
Measuring Principle Chronoamperometry
Sampling Method Diffusion type
Measuring Range 0?50.0ppm
Resolution 0.1ppm
Alarm Concentration 10, 30ppm
Alarm Method LCD display, LED Lamp, Buzzer and Vibration
Power Source 3 × "AA" size Alkaline batteries
Continuous Operation time Alkaline batteries : approx. 1000 hrs
Explosionproof ExiaII CT4X
Operating Temperature Range -10?40℃
Main Body Dimensions 105 (W) X 56 (H) X  29 (D)mm (excluding a sensor)
Main Body Weight 150g
Standard Accessories Carrying case
Remote Measurement (optional) Sensor cord assembly set for toxic gas(5m)
