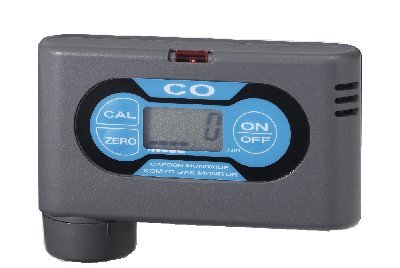

TPA-5000E


Carbon Monoxide is a common industrial gas encountered in steel mills, refineries, utilities and other processes.
The TPA-5000E CO personal monitor alerts the worker to dangerous levels of the odorless and colourless gas.
Easy to use and transfer
Vibrating alarm for high noise areas
Large luminated LCD display
Operation for about 5 months at 8 hours per day with alkaline batteries
Sensor faces down for protection from dust and water
SPECIFICATIONS


Model

TPA-5000E
Measuring Gas Carbon Monoxide
Measuring Principle Chronoamperometry
Sampling method Diffusion type
Measuring Range 0?500ppm
Resolution 1ppm
Alarm concentration 50, 100ppm
Alarm Method LCD display, LED Lamp, Buzzer and Vibration
Power Source 3 × "AA" size Alkaline batteries
Continuous Operation time Alkaline batteries : approx. 1000 hrs
Explosionproof ExiaII CT4X
Operating Temperature Range -10?40℃
Main body dimensions 105 (W) X 56 (H) X  29 (D)mm (excluding a sensor)
Main body weight 150g
Standard accessories Carrying case
Remote measurement (optional) Sensor cord assy set for toxic gas(5m)
